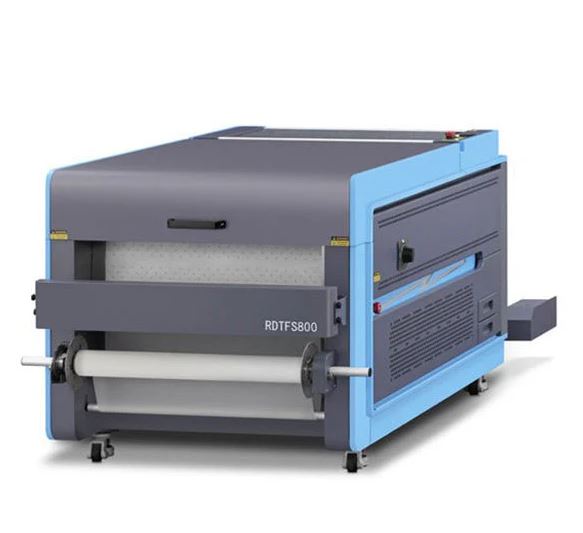

Roland RDTFS800 Inline Powder Shaker Dryer Oven for TY-300 DTF Printer

Add to wishlist
SKU: N/A
Add to wishlist

$1,100.00

Compare

Description

The Process

  • The film exits the printer and is guided into the shaker unit via the pre-heater platen. Once inside, the printed film undergoes a dusting and powder application process in the powder bin
  • Excess powder is collected in dual trays and recycled into the top hopper for reuse
  • The powdered film is then transferred to the heating section, where it travels along the platen
  • Under heat, the powder melts and solidifies onto the film
  • As the solidified film exits the heater section, it is cooled by an exit media fan and wound onto the media take-up unit.The completed roll of film can then be removed, ready for final distribution and heat pressing

Popular Applications

  • Custom T-Shirts and Sportswear
  • Fabric Accessories
  • Footwear
  • Home Textiles
MODEL RDTFS800
WORKING ENVIRONMENT – POWER ON 18 to 30℃ (64.4 to 86°F), 24℃ (75°F) recommended. Humidity 30% to 70%, 50% recommended
POWER CONSUMPTION – OPERATING STATE 4000W
POWER CONSUMPTION – STANDBY STATE 400W
ELECTRICAL REQUIREMENTS AC200-240v @ 50/60Hz, current = 16A x 1 (Single Phase)
PRODUCT SIZE Length: 1930mm (76in), Width: 1360mm (53.5in), Height: 1010mm (40in)
PRODUCT WEIGHT 842lbs (382kg)
PACKAGE SIZE Length: 1990mm (78.4in), Width: 1360mm (53.5in), Height: 1270mm (50in)
PACKAGE WEIGHT 1049lbs (476kg)
CONSUMABLES HEPA Filter: #300000003, Carbon Filter: 300000002
MAXIMUM FEEDING SPEED >30m2/hr
MEDIA REWINDER – MAXIMUM MEDIA WEIGHT 220lbs (100kg)
MEDIA REWINDER – MAXIMUM MEDIA DIAMETER 200mm (7.87in)
SAFE DESIGN Emergency stop button open, media and powder sensors
FILTER / SMOKE EXHAUST FUNCTION Built-in filtre element, user-replaceable, lifespan is about 6 months. Embedded HEPA, user replaceable, roughly 6 to 12 months life depending on use
LANGUAGE SUPPORT English, Japanese, Chinese, Korean, Spanish, French, and Portuguese as standard
